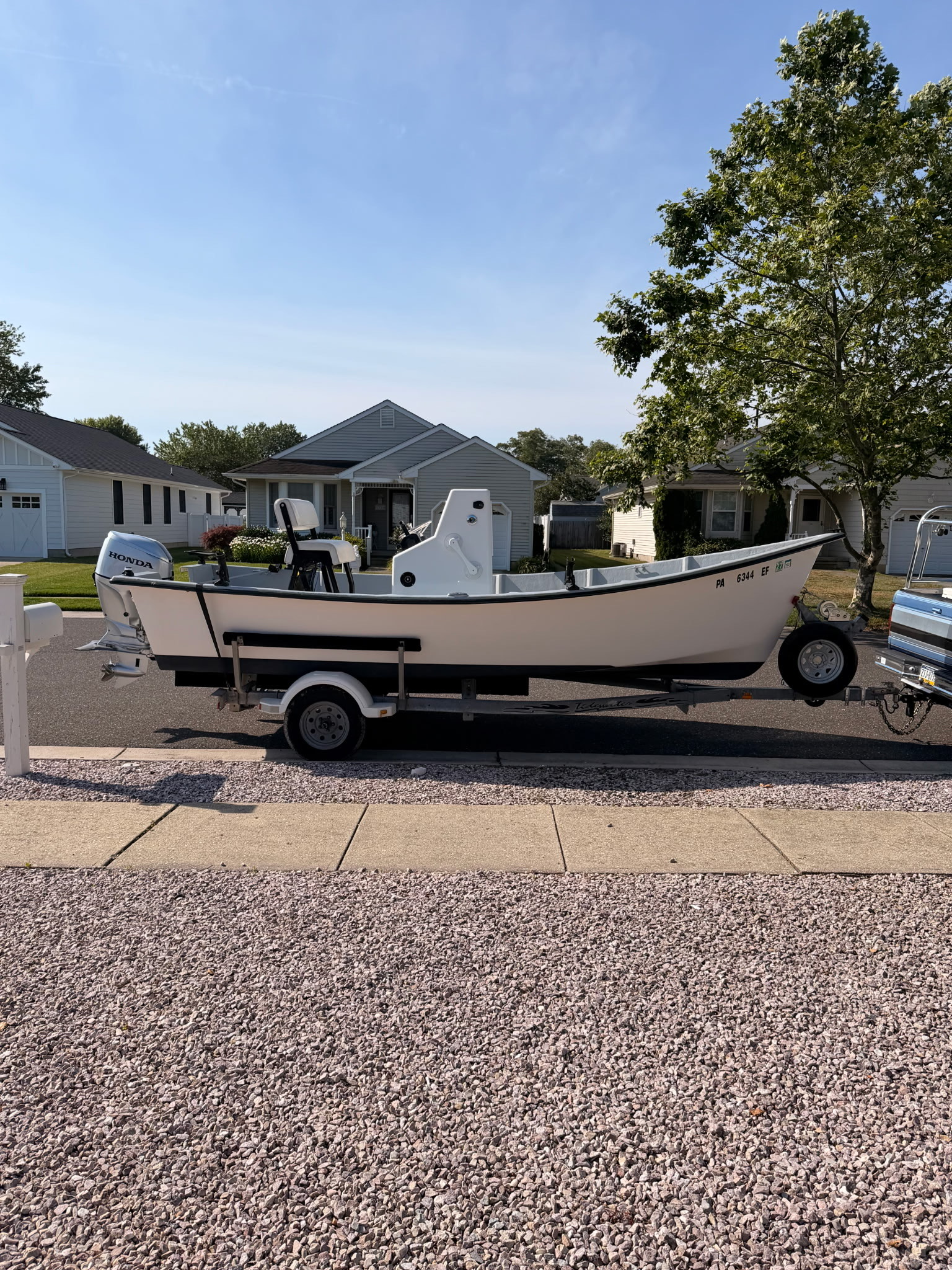

2007 Seaway 19CC Custom Rebuild 2025-26

2007 Seaway 19 - Custom Rebuild / 2025 Honda BF60 / Turn-Key

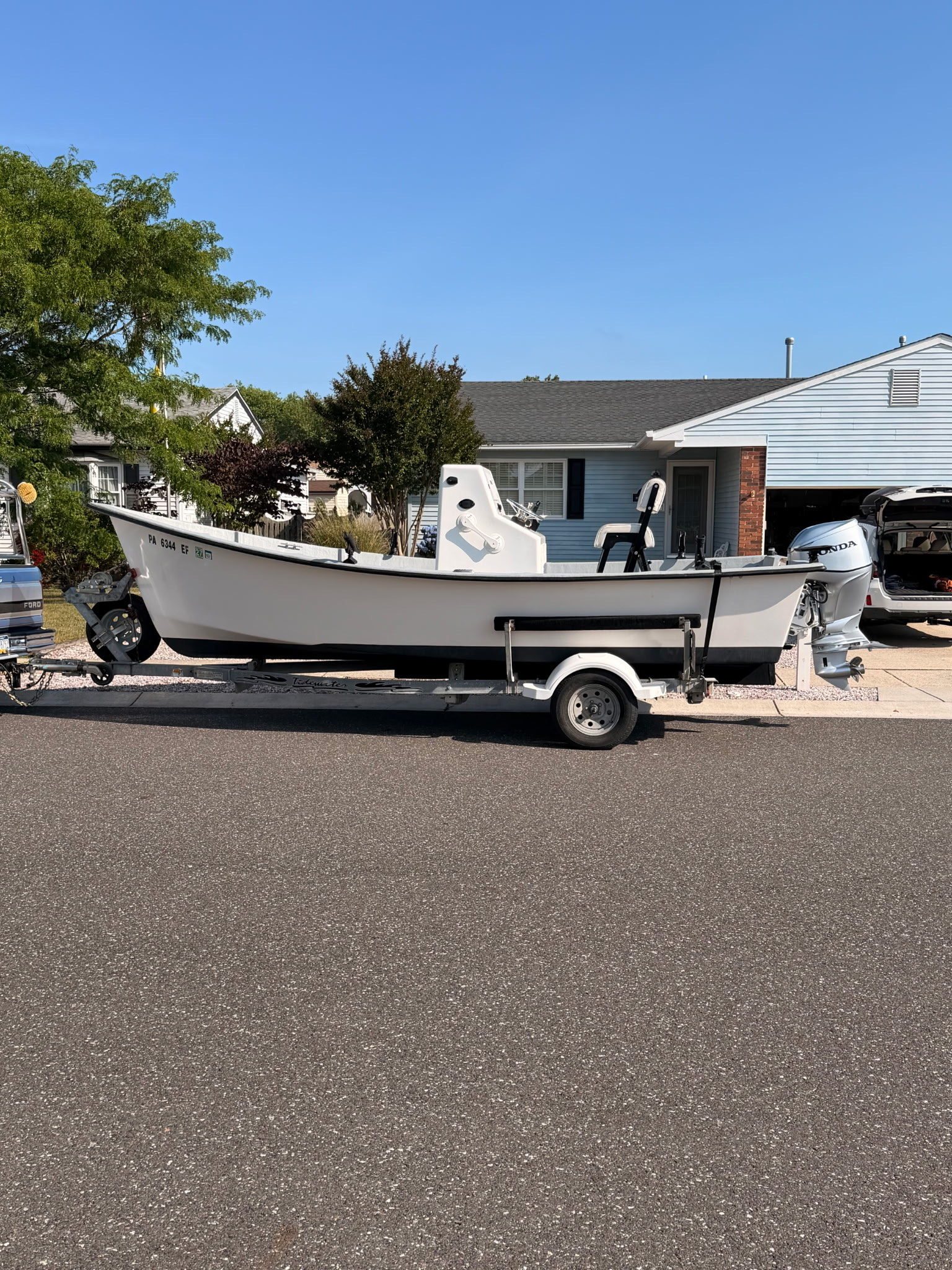

2007 Seaway 19 custom rebuild with major structural, mechanical, electrical, and rigging upgrades. This boat has been thoughtfully redone the right way, with a strong focus on reliability, clean rigging, and preserving the hull with no unnecessary holes in the deck or transom. If you’re looking for a shallow-draft, solid, ready-to-run setup, this is a very clean build.

Highlights

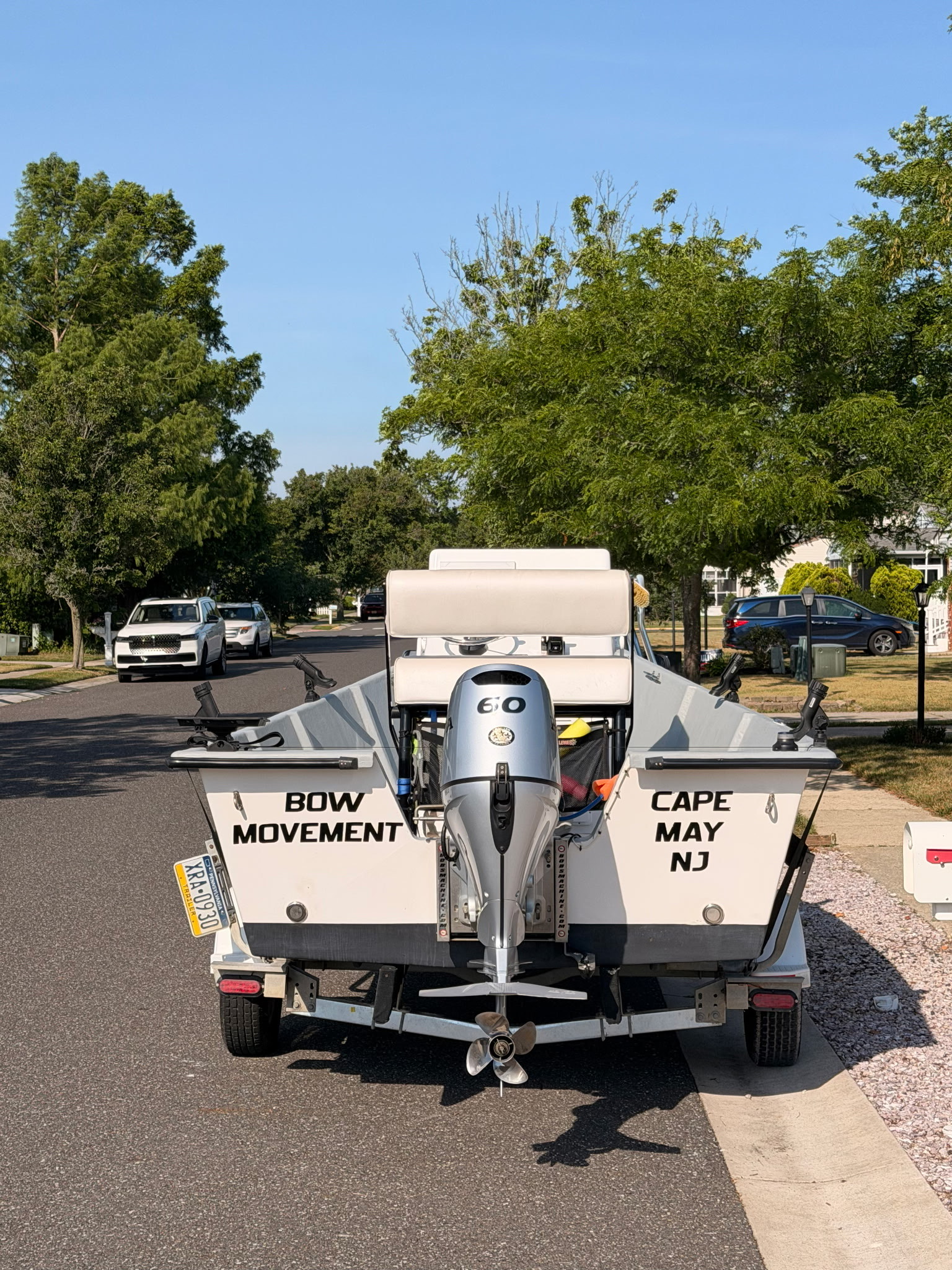

• 2025 Honda BF60 installed in May 2025
• 203 hours
• factory warranty

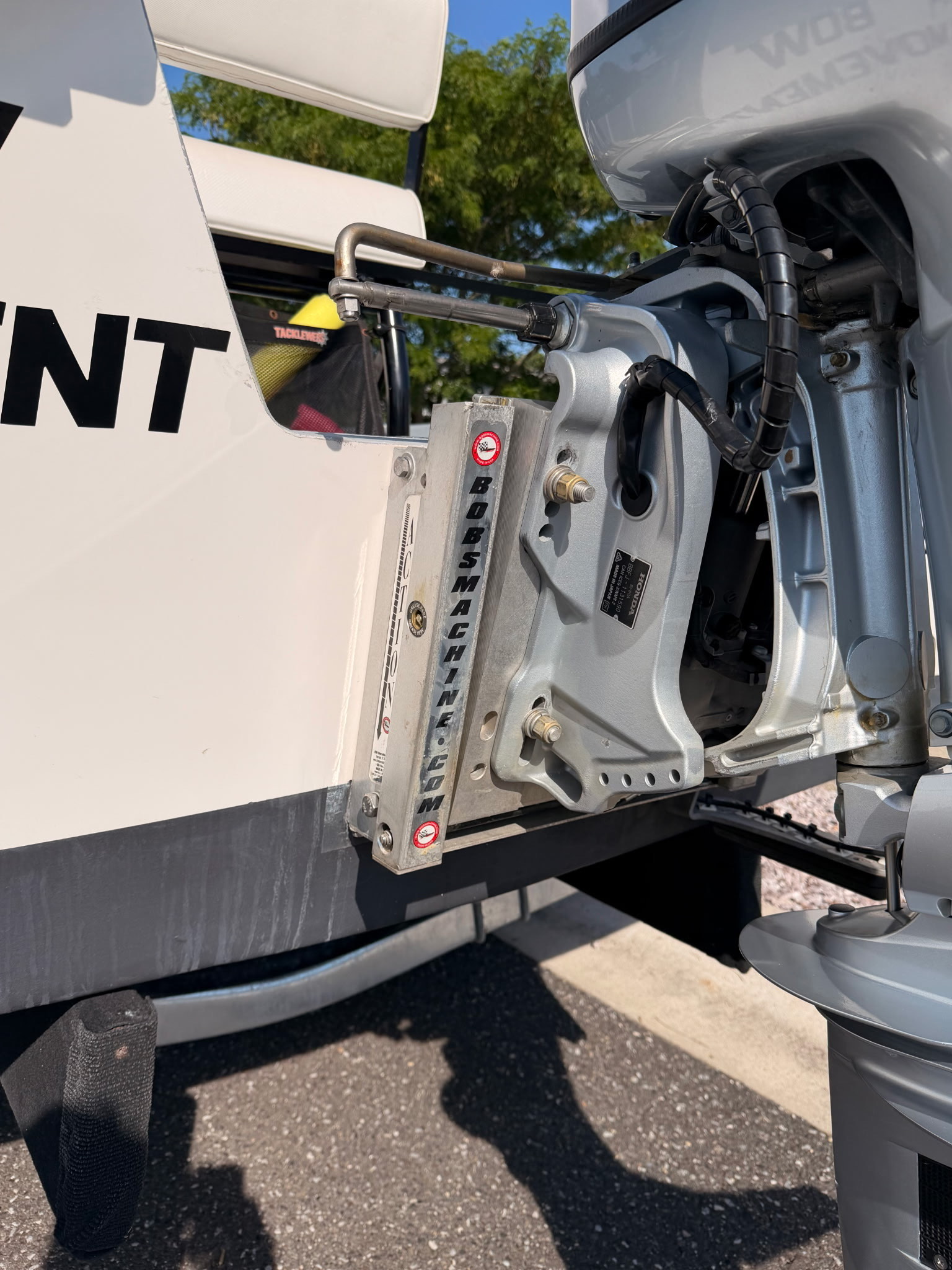

• Bob’s Jack Plate installed May 2025
• Drafts approximately 10 inches

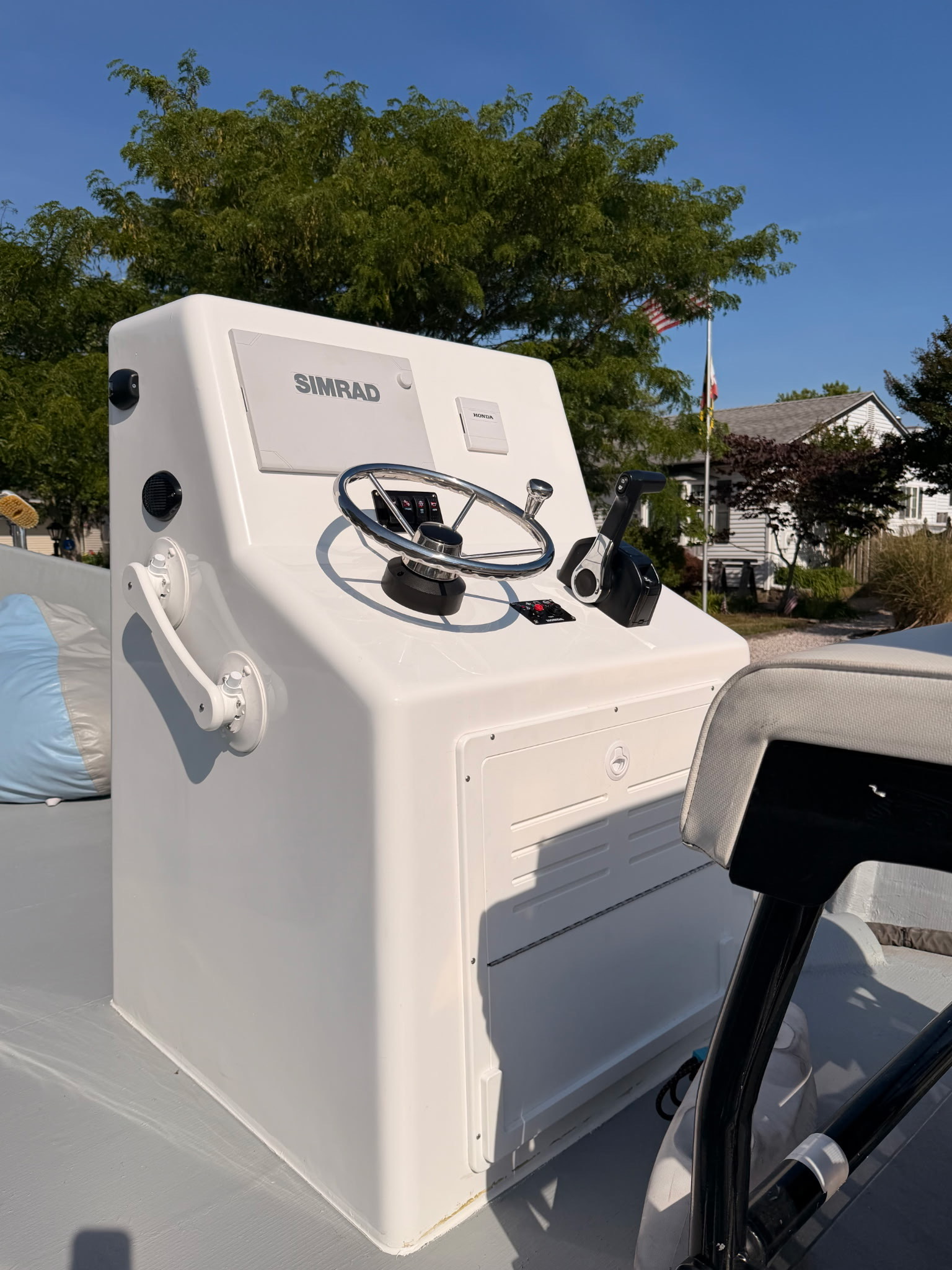

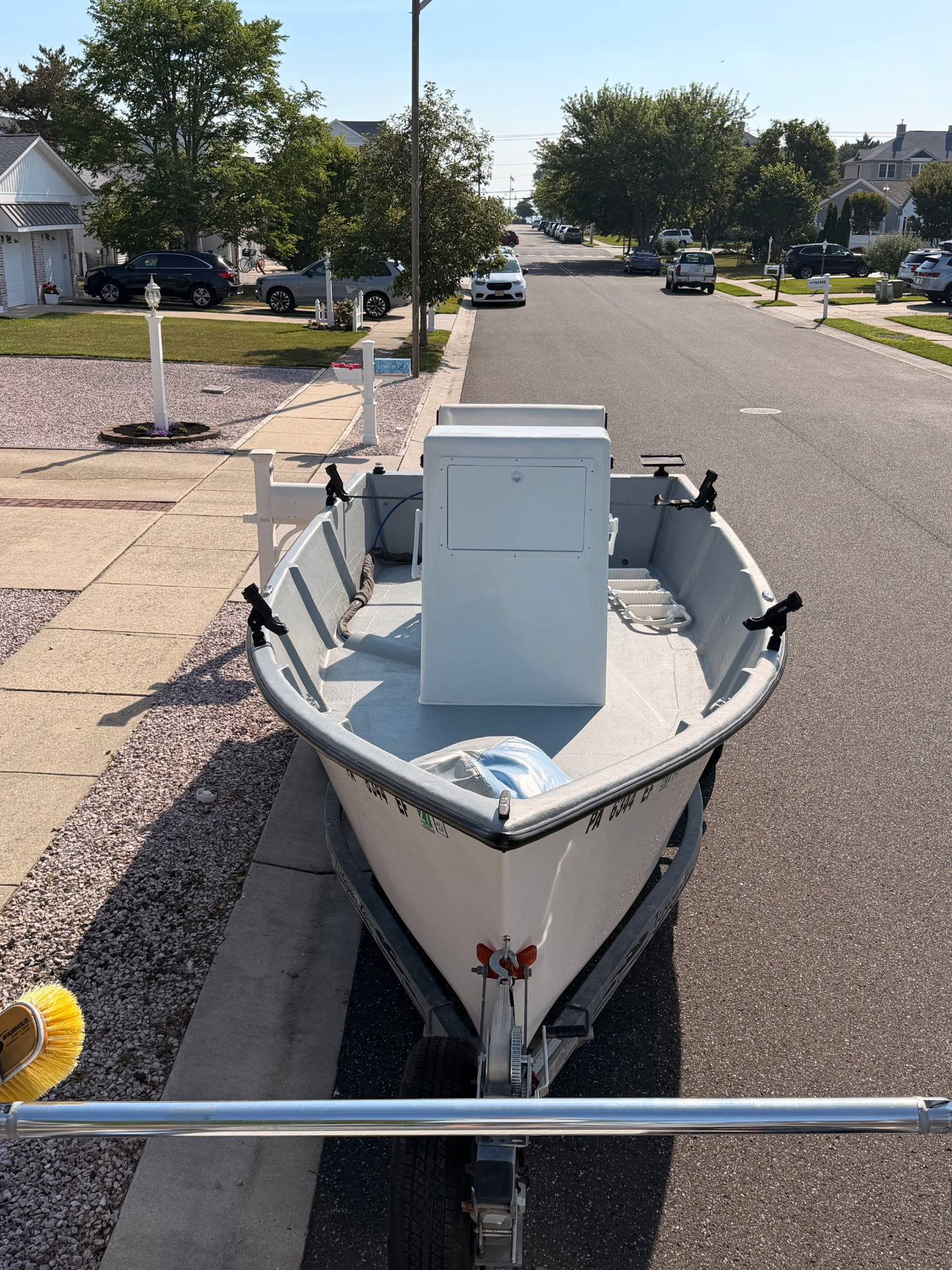

• New custom console installed March 2026
• New 40-gallon Dometic fuel tank installed March 2026
• Complete rewire in March 2026
• 2025 Simrad NSS evo12s with 3-in-1 transducer
• NMEA 2000 backbone
• Honda fuel management
• Honda digital gauge installed June 2026
• Rebuilt trailer with major upgrades
• No holes in deck above or below waterline for console or leaning post installation
• No holes in transom for transducer mount

Construction and Restoration Details

This Seaway 19 has had extensive structural work completed:

• Composite deck, stringers, and Coosa transom
• All solid construction
• Prior to console and fuel tank installation, the deck was stripped and reinforced with 1708 fiberglass and vinyl ester resin
• Deck tabs were doubled and extended 8 inches up toward the gunwale
• All previous deck holes were properly filled

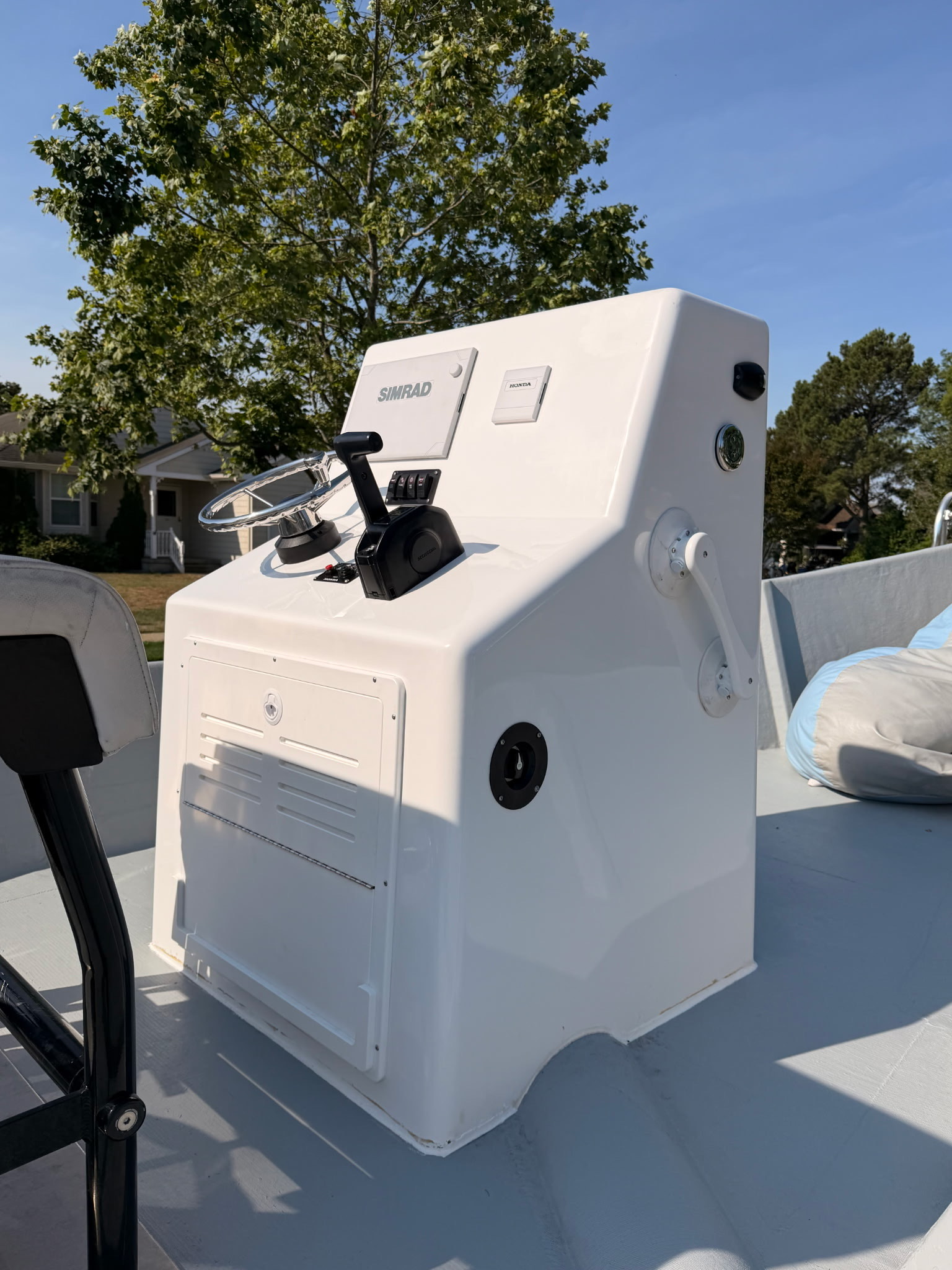

• New console was secured using Acralock SA10, with no holes drilled into the deck
• Stryker swing-back leaning post welded to 1/4-inch aluminum plate and also secured using Acralock SA10
• Even the 316 stainless scupper flaps were secured with adhesive

This boat was rebuilt with attention to detail and with long-term durability in mind.

Electronics and Rigging

• Simrad NSS evo12s

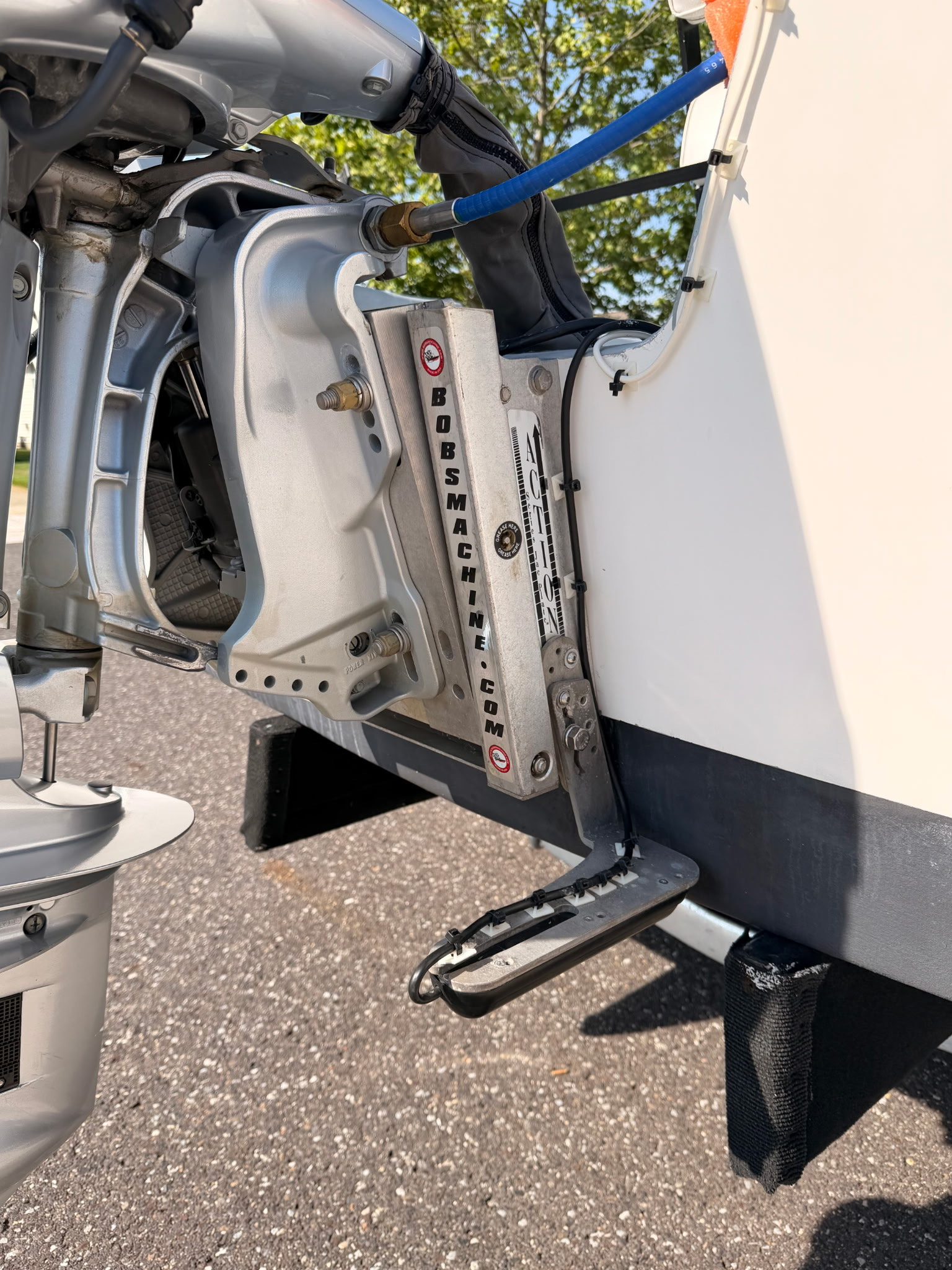

• 3-in-1 transducer mounted to the jack plate
• NMEA 2000 backbone
• Honda fuel management system
• Honda digital gauge installed June 2026

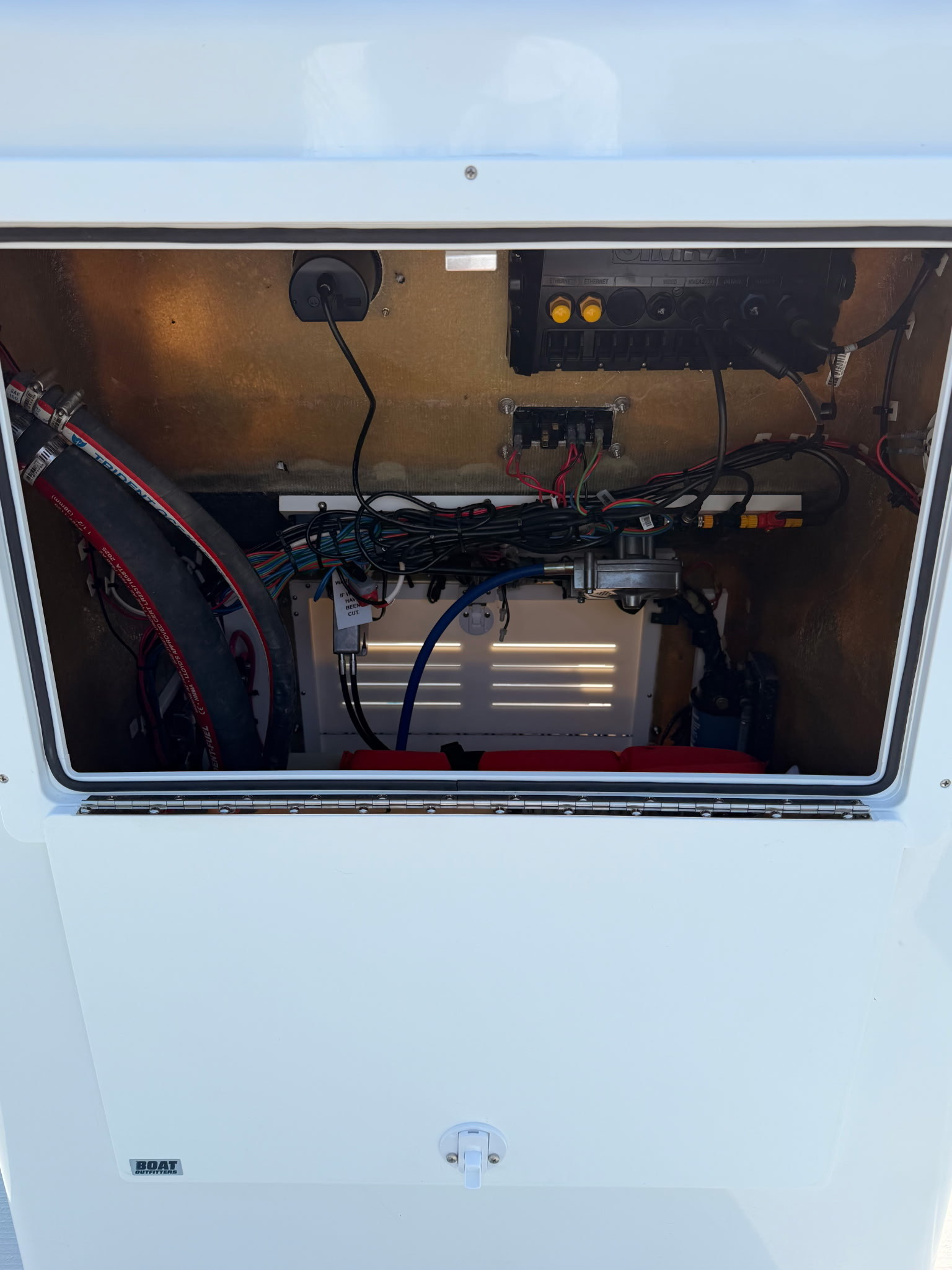

• Every wire replaced in March 2026

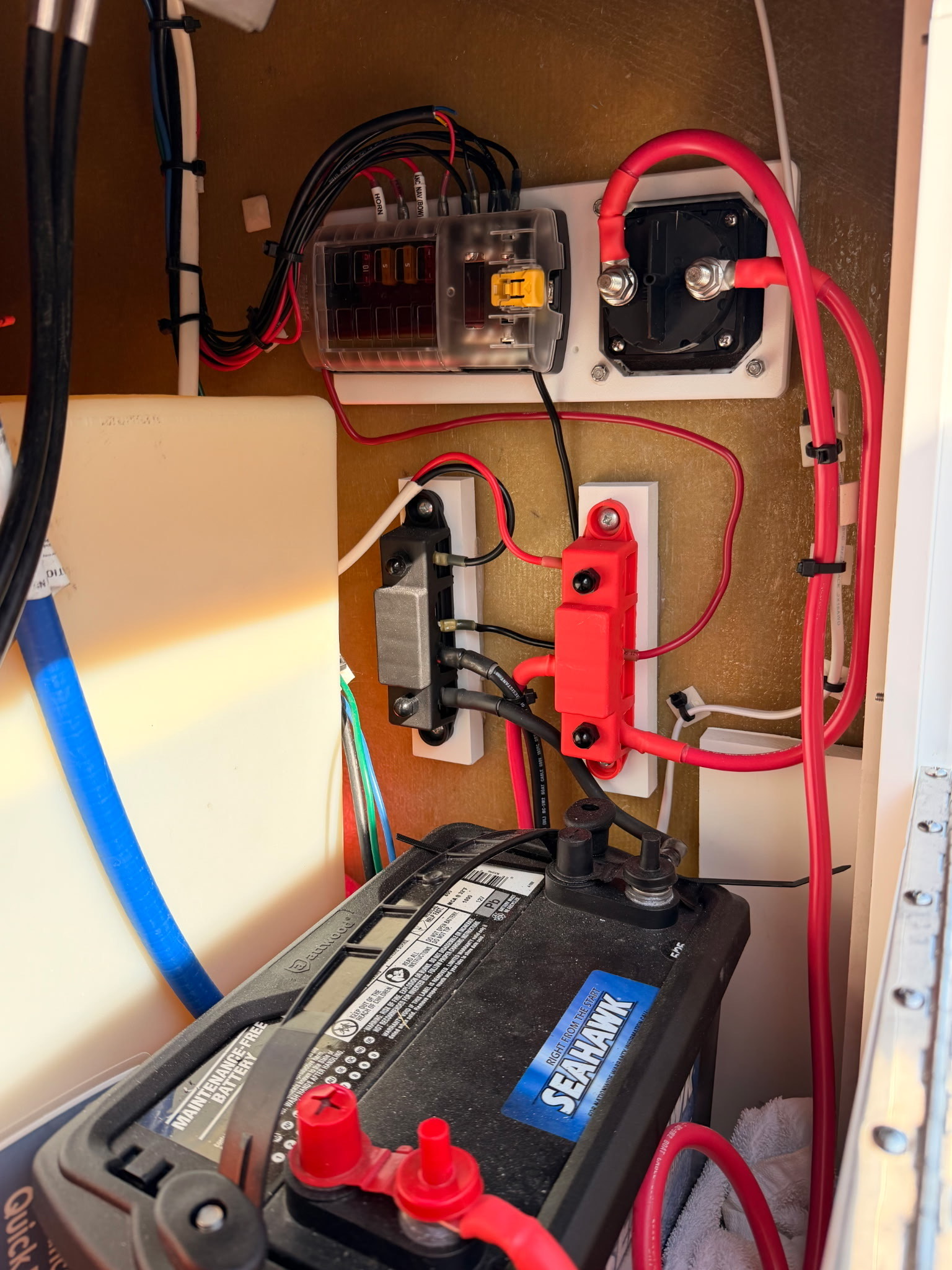

• New battery, bus bars, and fuse block
• New fuel lines installed March 2026

Engine Service and Maintenance

The Honda BF60 has been properly maintained from day one:

• Properly broken in
• 20-hour break-in service completed
• Motor oil/filter and lower unit oil changed every 50 hours
• New spark plugs at 197 hours
• Valve check completed at 197 hours - all in spec

• Trailer

  Trailer was rebuilt in 2025 and updated again in June 2026:

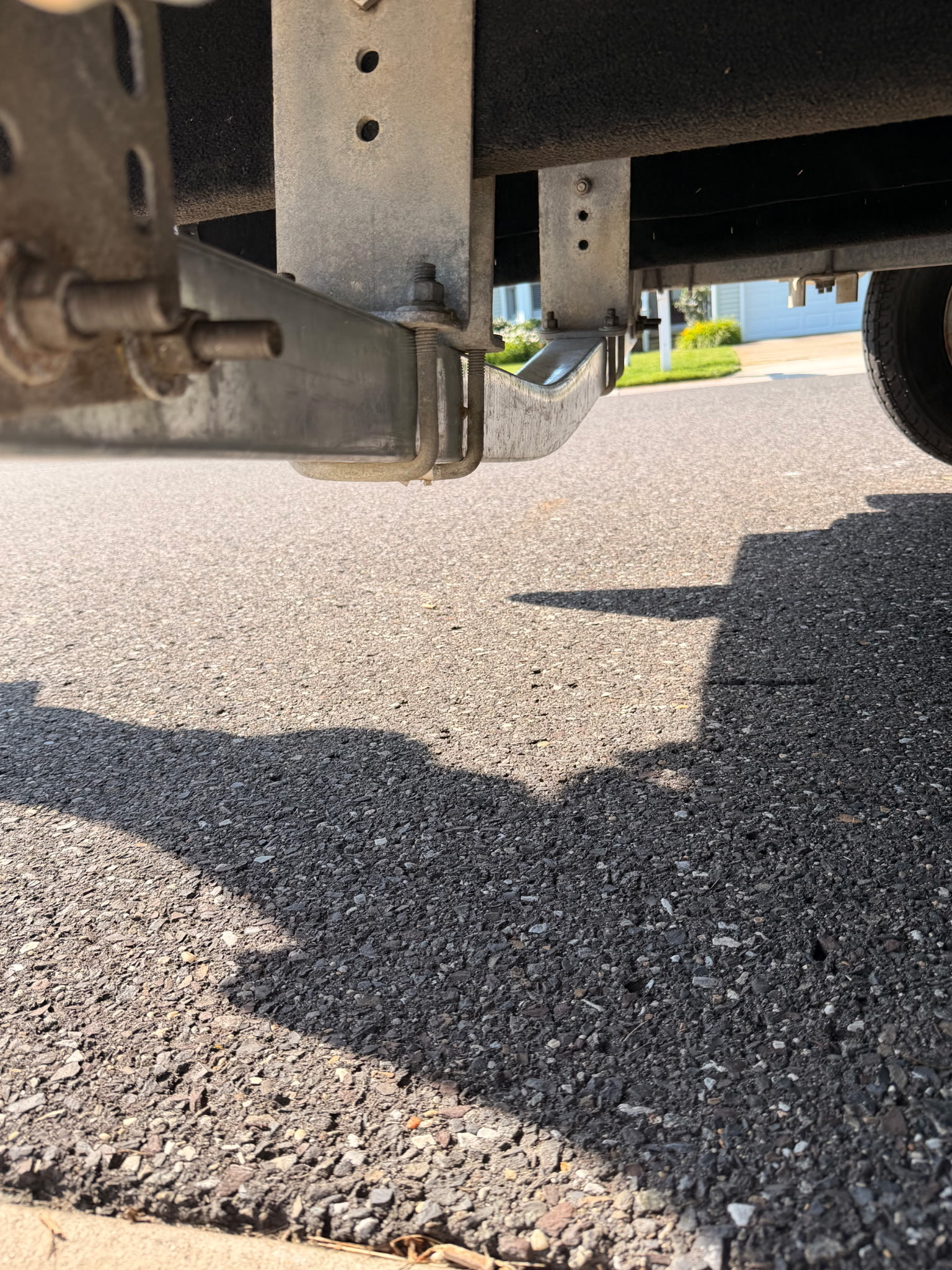

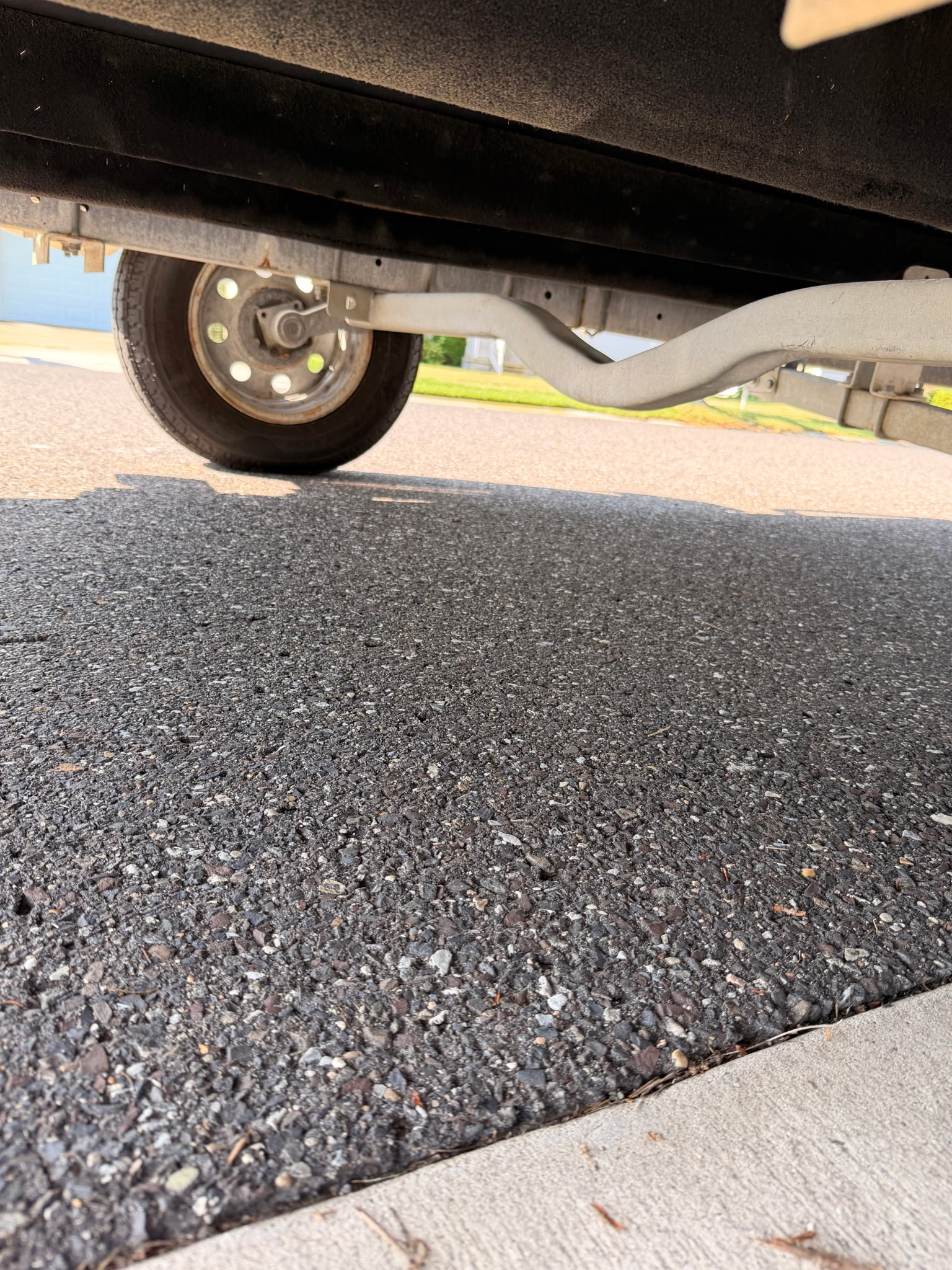

  • New torsion axle
  • New bearings
  • New cross members
  • New hardware
  • New keel roller
  • New bow rest

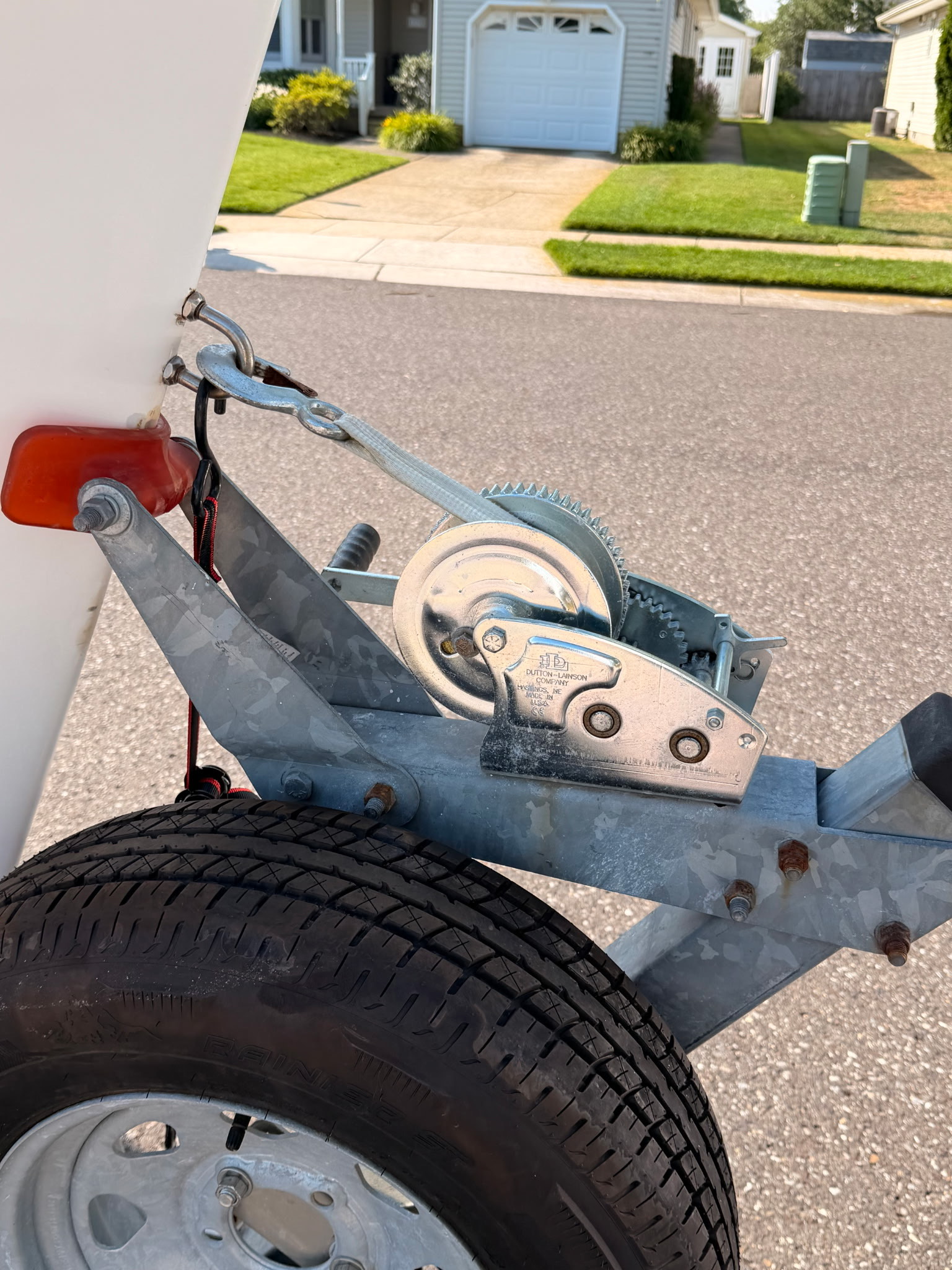

  • New winch
  • New jack
  • Full wire harness and lights replaced June 2026
